คอร์สเรียน Autodesk Inventor สำหรับงานวิเคราะห์การเคลื่อนที่

Simulation user interface

• Dynamic Simulation Overview
• Dynamic Simulation WorkFlow

• Standard joints
• Rolling joints
• Sliding joints
• 2D contact joints

Force joints

• Degree of Freedom
• Dynamic simulation setting
• Newton's cradle (Model) เรียนรู้คำสั่งดังนี้
• Automatically convert constraints to standard joints

Restructure parts into subassemblies

• Weld parts together
• Lock the joints' degrees of freedom
• Set initial position of first ball
• Set gravity – external forces
• Create 2D contact between balls
• Set contact properties of balls
• Play – simulate Newton's cradle

• Automatically convert standard joints and rolling joints
• Create other nonstandard joints
• Set initial position
• Define imposed motion by applying constant velocity
• Define friction in joints

• Manually create standard joints
• Weld components together
• Continue manually creating joints
• Set gravity (external forces)

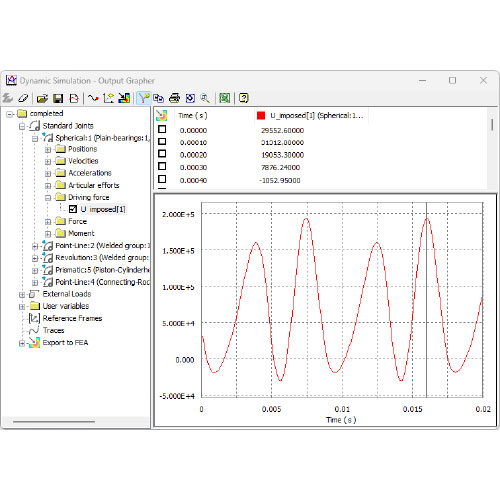

• Define imposed motion using Input Grapher
• Create trace
• Export trace
• Create cam from export trace
• Play simulation based on new cam
